GOES-16 'sees' supercell over South Dakota

GOES-16 'sees' supercell over South Dakota

29 June 2018 18:02 UTC–30 June 06:02 UTC

GOES-16 'sees' supercell over South Dakota
GOES-16 'sees' supercell over South Dakota

In June 2018 supercell thunderstorms brought tornadoes and large hailstones to South Dakota.

Last Updated

22 October 2020

Published on

29 June 2018

By Ivan Smiljanic (SCISYS) and Sancha Lancaster (Pactum)

On 29 June South Dakota experienced severe thunderstorms, the most intense of which produced tornadoes near the northern Black Hills, 11.5 cm diameter hail near the city of Newell, and winds of up to 145 km/h (90 mph). The storms travelled around 675 km (420 mi). It was reported that the large hailstones from the storm caused damage that could be seen from space (Figure 1)

 Terra MODIS True Color RGB showing the scars of the areas affected by high winds and large hail that pulverised crops.
Figure 1: Terra MODIS True Color RGB showing the scars of the areas affected by high winds and large hail that pulverised crops.

The 5-minute Mesoscale Domain Sector GOES-16 (GOES-East) Dust RGB images (Figure 2) showed the development of large clusters of thunderstorms that moved from northeastern Wyoming into South Dakota during the afternoon and evening hours on 29 June 2018. Note: Black area on left is where data has not been rendered in the main area of the domain.


.

A synoptic ridge was suppressing cloud formation in most of the central and eastern US, with strong convective episodes at the western edge of a wide anticyclone (including South and North Dakota, and other neighbouring states) (Figure 3).

Image comparison

GOES-16 Dust RGB compare1
compare2

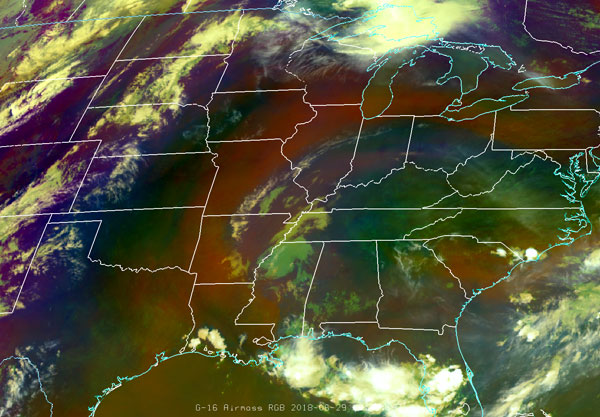

Figure 3: Comparison of GOES-16 Airmass and Dust RGB images, 29 June 18:02 UTC
