Storm Ana caused widespread severe weather across Europe, from high winds to heavy snowfall, in the second week of December 2017.

Last Updated

10 October 2022

Published on

08 December 2017

By Andreas Wirth (ZAMG) and Jochen Kerkmann (EUMETSAT)

On 11 December winds of over 160km/h were reported in western France, near La Rochelle. Spain and Italy were also slammed by the strong winds, with heavy rain and snow affecting many parts of western Europe.

Satrep analysis of the cloud features seen in the Airmass RGB, 10 December 2017, 06:00 UTC — Figure 1: Satrep analysis of the cloud features seen in the Airmass RGB, 10 December 06:00 UTC

By 12 December the centre of the storm was now heading northeast, bringing further severe weather to northern parts of Europe. Winds of up to 90km/h were recorded in Poland, and heavy snow was reported in Finland.

Ana's progress can be clearly see on the animation of Meteosat-10 Airmass RGB imagery, 9 December 00:00 UTC–11 December 06:00 UTC.

A classical rapid cyclogenesis associated with Ana induced a foehn storm over the Alps on 10 and 11 December 2017. Ana advected moist and warm air from the Mediterranean region into middle Europe. This resulted in rain and snowfall south of the Alps on one hand and a very strong foehn storm on the other.

Wind speeds up to 200 km/h on mountain peaks were measured in Salzburg and the southern parts of Austria. Because of the relatively warm temperatures, most of the precipitation fell as rain causing local inundations.

Stages of development

Sunday 10 December 2017, 06:00 UTC

The development of the rapid cyclogenesis started on Sunday 10 December at 06:00 UTC and was relatively unimpressive, with the appearance of a wave bulge at the rear side of a west to east bound cold front (Figure 1).

While the surface pressure only showed an almost unnoticeable weak trough, the red colour of the wave bulge in the SEVIRI Airmass RGB hits the meteorologist eyes. This colour is uncommon in frontal waves; it is a clear sign for overrunning cold air sinking from higher atmospheric levels — a first indication for a very dynamic development.

This first guess was confirmed by the position of the cloud bulge in respect to the jet; a positive vorticity advection at 300hPa, was located right above this cloud feature, to the left.

Sunday 10 December 2017, 12:00 UTC

Six hours later on the Airmass RGB the classical signs of a developing Rapid Cyclogenesis can be seen — a comma-shaped cloud feature at the rear of a frontal cloud band which was still overrun by stratospheric air (indicated by the red colour).

Met-10 Airmass RGB, 10 December 2017 12:00 UTC. The green line indicates the position of the vertical cross section (VCS) across the split front. — Figure 2: Meteosat-10 Airmass RGB, 10 December 12:00 UTC. Green line indicates the position of the vertical cross section (VCS) across split front.

The surface pressure started to drop dramatically and cold air advection increased behind the surface cold front. The vertical cross section clearly shows that the surface front was associated with the comma-like cloud feature north of the broad cloud band (see images below).

Figure 3: Cross-section from map, Equivalent Potential Temperature and Relative Humidity

Figure 4: Cross-section from map, Equivalent Potential Temperature and Temperature Advection

The broader cloud band in the south was an upper cold front, also known as a 'Split Cold Front' due to the visible separation of the upper front from the surface front in satellite imagery. The vertical cross sections (Figure 3 and 4) indicate that the region of the surface cold front was highly unstable — warm air advection in lower levels superimposed by cold air advection above 600hPa.

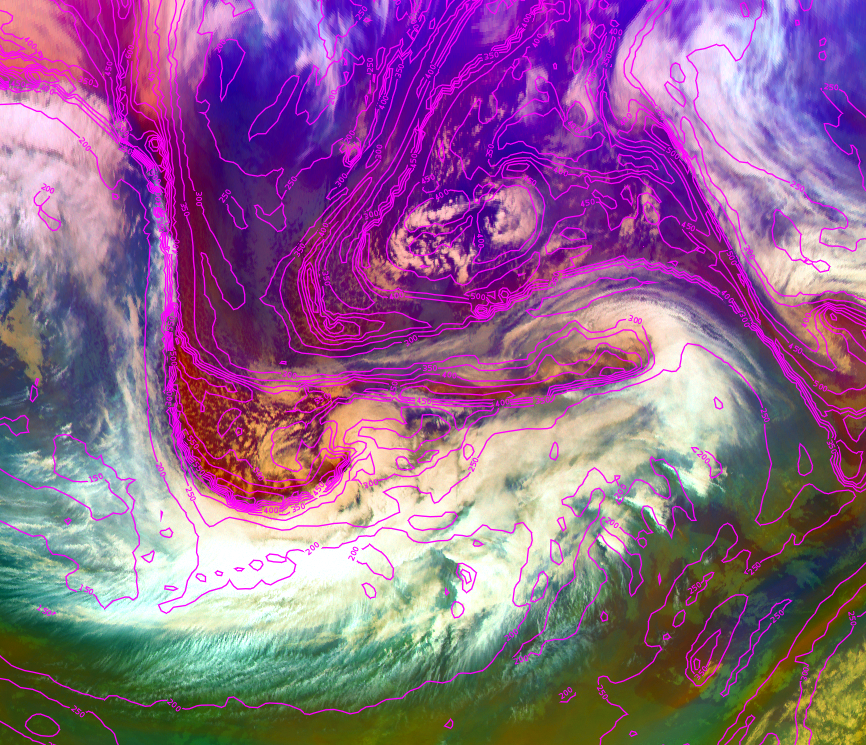

Met-10 Airmass RGB with height of the potential vorticity (PV=1.5) layer, 10 Dec 18:00 UTC — Figure 5: Meteosat-10 Airmass RGB with height of the potential vorticity (PV=1.5) layer, 10 December 18:00 UTC

Sunday 10 December 2017, 18:00 UTC

The pressure in the centre of the low Ana dropped to 974hPa. The cloud head started to transform into an occlusion, cyclonic vorticity increased, and the height of the PV=1.5 surface showed a distinct minimum in the red area of the Airmass RGB (Figure 5).

This was now the peak phase of the rapid cyclogenesis. The position of the jet axis ran along the rear side of the cold front and the dipole of cold and warm air advection was still very strong.

Monday 11 December 2017, 00:00 and 06:00 UTC

The cylogenesis process came to an end, the pressure minimum in the centre of low Ana dropped further to 958hPa. The Airmass RGB (Figure 6) shows a classical frontal system, a cold conveyor belt occlusion that developed out of the cloud head.

Met-10 Airmass RGB with height of the potential vorticity (PV=1.5) layer, 11 Dec 06:00 UTC — Figure 6: Meteosat-10 Airmass RGB with height of the potential vorticity (PV=1.5) layer, 11 December 06:00 UTC

The PV=1.5 minimum lay within the low centre, the jet axis split into two branches, one at the rear side of the cold front and the other ahead of the warm front.

The formation of low Ana goes hand in hand with the typical stages of a rapid cyclogenesis. The very first indication was the cloud head at the rear side of a frontal cloud band.

This wave-like bulge was different from a classical frontal wave insofar that it showed as a red colour in the Airmass RGB.

This is the indication for sinking dry stratospheric air, a process which makes this situation so explosive because it destabilises the lower atmospheric levels.
