On 25 June 2003, a fire broke out at the Al-Mishraq sulphur plant, about 25 kilometres south of the city of Mosul, and a thick sulphur smoke dominated the sky in the area.

Last Updated

21 October 2020

Published on

25 June 2003

The fire had been caused by rocket-propelled grenades fired by unknown persons.



The toxic smoke affected the cities of Qayyarah, Al Shurah and Makhmur, along with approximately 25 surrounding villages. The major health concern associated with exposure to high concentrations of sulphur dioxide includes effects on breathing, respiratory illnesses and alterations in pulmonary defenses. It causes eye, nose, throat, and skin irritations especially for people with allergies.

The environmental impact that sulphur dioxide inflicts on the surrounding area causes even greater concern. More than 40 percent of the trees lost their leaves in a radius of 100 km from the plant. The fire was finally extinguished one month later, after releasing millions of metric tonnes of sulphur dioxide into the air.

The area covered by the sulphur dioxide concentrations has been large enough to detect with Meteosat Second Generation (MSG). There are two SO2 absorption bands in the infrared region: one stronger band at around 7.3 microns and a weaker band at around 8.6 microns.

In this extreme case, the IR8.7 channel on Meteosat-8 easily detected the plume (see image above), while the WV7.3 channel failed to detect it. The reason for this is probably that, due to a strong temperature inversion, the SO2 cloud was limited to the Planetary Boundary Layer (PBL) and thus not detectable by the WV7.3 channel, which has the peak of the weighting function in the layer from about 700 to 400 hPa (depending on the humidity content). The SO2 cloud is even better depicted in the brightness temperature difference between the IR10.8 and the IR8.7 channels (see image and animation above).

During day-time, the IR8.7 channel was up to 21 K colder than the IR10.8 channel due to the strong absorption of the radiation from the very hot surface. During night-time, the IR8.7 channel was up to 4 K warmer than the IR10.8 channel, indicating the presence of a low-level temperature inversion (the SO2 absorbs the radiation from the surface, which is then re-emitted at a higher temperature).

The images below show the smoke plume from the fire (MODIS RGB composite image) and the monthly averaged SO2 concentration in the area (from SCIAMACHY data). As can be seen from the latter, most of the SO2 plume went in easterly direction, towards the Caspian Sea, indicating prevailing winds from the west during the week(s) that followed the accident.



Meteosat-8 Images

Met-8, 25 June, 10:00 UTC
Channel 07 (IR8.7)
Full Resolution
Animation 00:00–12:00 UTC
Met-8, 25 June, 10:00 UTC
Channel 09 (IR10.8)
Full Resolution

Met-8, 25 June, 10:00 UTC
Difference Image IR10.8–IR8.7
Full Resolution
Animation 00:00–12:00 UTC (AVI)
Met-8, 25 June, 04:00 UTC
Channel 12 (HRV)
Full Resolution
Animation 02:00–08:00 UTC (AVI)

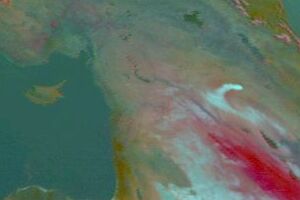

Met-8, 25 June, 10:00 UTC
RGB Composite
VIS0.6, IR10.8–IR8.7, IR12.0–IR8.7
Full Resolution
Met-8, 25 June, 10:00 UTC
RGB Composite
VIS0.8, IR10.8–IR8.7, IR8.7
Full Resolution


Other Images

MODIS, 25 June, 10:35 UTC
RGB Composite (pixel size 250 m)
Full Resolution (courtesy NASA)
Envisat, SCIAMACHY, SO2 concentration
26 June–25 July (monthly mean)
Full Resolution (courtesy University of Bremen).
